High-precision and smart sensors
Range by measured parameter.
C16
C16 sensors are robust, watertight, all-metal pressure sensors.
From 2 to 1000 bars.
The C16 can be attached to a grout separator SP100, SP200, SP300, SP400, SP500, SP600.
AT50
The AT50 is a flow and air pressure sensor that works according to the principles of Bernouilli's law.
It delivers two measurement signals, a static pressure signal, a signal for the calculation of the air flow.
To facilitate maintenance on construction sites, the AT50 is equipped with purge valves to blow all internal lines.
EDH
The EDHxx sensors (xx: diameter of the pipe) are electromagnetic flow meters.
SP
SP separators have a full-flow membrane. They allow the measurement of the pressure in the pipes where grout, concretes, mortars flow.
The membranes are made of an elastoplastic material that is particularly resistant to abrasion and chemicals. They make it possible to measure minimum pressures of a few tens of millibars without significant error.
CMW50K
The CMW50K is a water-tight pressure sensor consisting of a brass body in which is housed the 50 bars measuring cell and the electronics for the remote connection.
Its stroke counter makes it possible to calculate the volume and flow rate of concrete injected without a flow meter.
D90
Displacement sensor with a long stroke.
The D90 sensor consists of an incremental rotary encoder driven by a toothed belt, held taut by a spiral spring.
The D90 exists in two versions: 7 and 15 m.
F82
Linear displacement sensor for depth measurement.
The F82 uses the principle of the pulley that rolls without sliding along a cable stretched between the two ends to be measured.
The measurement signal is delivered by an incremental rotary encoder.
P82
The P82 sensor uses the principle of the wheel that rolls on the surface whose displacement is to be measured.
The axis of the wheel is integral with an incremental rotary encoder.
The assembly is mounted at the end of an oscillating arm of adjustable length. Its axis is mounted on a rubber tension block that can be prestressed to produce a suitable bearing force.
C82
The sensor C82 is an incremental rotary displacement sensor; it is usually mounted at the end of a pulley shaft.
It is a robust, waterproof sensor made of stainless materials (bronze, brass, stainless steel).
When mounting, it is essential to provide an elastic coupling between the power take-off and the C82 axis.
VR28
The VR28 sensor is a proximity sensor made up of a metal tube with a cable gland outlet: the detection element creates a high-frequency electromagnetic field at the end of the sensor whose amplitude is damped by the presence of a close metal object.
ANTOISE 2
The ANTOISE 2 set allows you to measure the position of the work to be carried out with an accuracy of 3 cm, as well as its inclination and orientation.
It consists of two GPS receivers, a GPS receiver called "base" placed above a point of known and exact coordinates.
It corrects the measurement of a second mobile receiver, the "machine" GPS receiver. It is composed of a metal support of one meter equipped with 2 GPS antennas and a housing containing the calculation unit.
One of the antennas is the positioning reference antenna, the other is used to determine the orientation
NORMA 2
The NORMA2 accurately measures the orientation and inclination of the mast on which it is mounted.
It is an efficient aid for Kelly piles, auger cast piles and mine or quarry parameters. It enables an accurate inclination and drilling direction control, independently of the positioning of the machine.
No effort or additional calculation is required, the driller controls the positioning of the mast on the X and Y axes on the screen of DIALOG MX4.
CCPVBR
The CCPVBR sensor is a vibration sensor. Mounted at the end of the electric lance of realization of the ballasted columns this sensor delivers several information:
- Amplitude and frequency of vibrations
- Vibrator temperature
- Vibrator tilt
- Buzzer deviation
- Operating time
V16AF50
The V16AF50 sensor is a vibration sensor. It is characterized by high sensitivity and a watertight seal (immersible sensor).
The sensor consists of a robust metal enclosure with cable outlet by cable gland.
It delivers two types of information: the frequency and the amplitude of the vibrations.
NEMOV BT
The NEMOV BT is a vibration and deviation/inclinationsensor for the penetration of profiles and tubes.
The NEMOV BT is equipped with a Bluetooth radio transmitter and a battery. In the absence of communication (immersed sensor), the measured values are stored in the internal memory of the NEMOV BT, they are transmitted right out of the tool.
NEMO

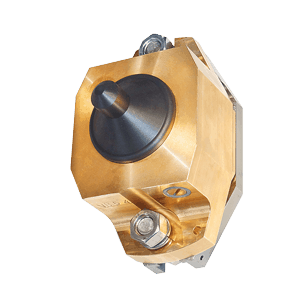

The NEMO sensor contains all the sensors for measuring the deviation (two directions and one rotation) of a rope grab.
The NEMO sensor is equipped with a bluetooth transmitter for rechargeable data transmission.
TIGOR
The TIGOR is an instrumented drill rod including deviation sensors, embedded electronics and batteries.
The set, declined in 2 models, monojet and double jet, is in the form of a nonmagnetic rod with a length of 1 meter.
PRAD

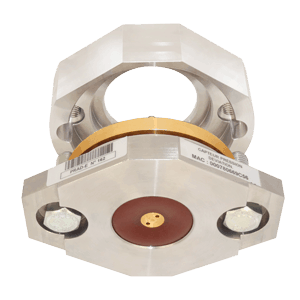

The PRAD is a wireless sensor for measuring the deviation and pressure of the ground, mud or concrete in continuous auger applications, Kelly piles and Soil mixing.
Easy to install, the sensor is equipped with a radio transmitter and a battery. Background information is known when the tool is out of the ground.
TAUPI
TAUPI is a sensor for measuring the pile deviation and pressure of concrete in continuous auger applications.
It is connected with a separate bluetooth transmitter powered by a battery; the sensor is positioned on the auger. The pressure of the ground and the pressure of the concrete during concreting, as well as the deviation, are transmitted in real time.
RICOR / CICOR
The CICOR / RICOR is an instrumented drill rod equipped with deviation measurement sensors, on-board electronics, a collector and specific connectors allowing the whole system to be linked and thus transmitting information in real time to the operator.
IGH
The IGH is a tilt sensor providing the angle of inclination to the vertical in two perpendicular planes. Measurements are provided in the form of 2 4-20 mA signals
Cable outlet with cable gland.
Measuring range: 20 ° to 90 °.
TICOR
The TICOR is a sensor for the direct measurement of rotation torque, tool force (thrust and retaining pressure) and rotation speed.
It is equipped with on-board electronics and a battery, a charging collar and a wireless link that allows measurements to be transmitted in real time to the operator.
First link in the chain
Jean Lutz instrumentation consists of sensors, devices, transmission to the Internet and software.
Jean Lutz SA's high-precision sensors send information that is analyzed by the devices to enable the analysis of the measurements recorded as data and graphs.
A permanent evolution
The range of instrumentation from Jean Lutz SA offers a wide range of reliable and robust sensors specific to Deep Foundations.
It makes it possible to measure all the values essential to the smooth running of a construction site.
Sensors are continually evolving, and new ones are constantly emerging to better meet growing requirements of customers.
